Thông tin chi tiết sản phẩm:
|
| Application: | hydraulic aluminium ladder platform lift | Warranty: | 24 Months |
|---|---|---|---|
| Material: | high strength aluminum alloy | Lifting Height: | 4m - 20m |
| Usage: | Used for high altitude working | Table Size: | 1400*600mm |
| Min. Lifting Height: | 1980mm | Overall Dimensions: | 1900×800×1980mm |
| Load Capacity: | 200kg | Voltage: | 110v 220v 240v 380v Optional |
| Feature: | Easy Operation Safety Convenience | ||
| Điểm nổi bật: | safety work platform,man lift rental |
||
Application:

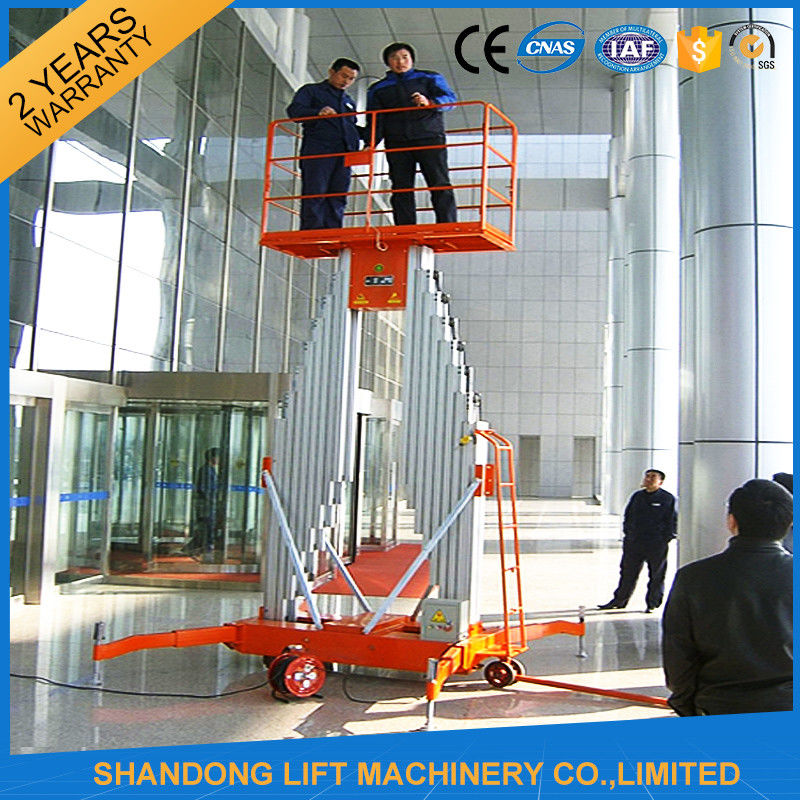

The aluminium ladder platform lift is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Operation is easy. There are 2 sets control system installed on the aluminium ladder, 1 control box below, and 1 control panel on safe rail that can be operated on man lift.
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above platform.
3) The limit switch system helps the aluminium ladder to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the aluminium ladder are passed 1.2 times loading test before leaving factory.
Product List:
| Model | Support column | Load capacity | Platform size | Lift height | Power | Total dimension | Weight |
| SJYL0.1-6 | one | 100kg | 550×550mm | 6m | 1.1kw | 1260×800×1900mm | 340Kg |
| SJYL0.2-6 | two | 200kg | 1050×550mm | 6m | 1.1kw | 1360×820×1900mm | 520Kg |
| SJYL0.2-8 | two | 200kg | 1100×550mm | 8m | 1.1kw | 1480×820×1980mm | 580Kg |
| SJYL0.2-10 | two | 200kg | 1400×600mm | 10m | 1.1kw | 1780×890×2080mm | 660kg |
| SJYL0.2-12 | two | 200kg | 1400×600mm | 12m | 1.1kw | 1860×1150×2150mm | 860kg |
| SJYL0.2-14 | three | 200kg | 1470×800mm | 14m | 2.2kw | 1750×1220×2250mm | 1040kg |
| SJYL0.2-16 | four | 200kg | 1470×800mm | 16m | 2.2kw | 1900×1280×2250mm | 1400kg |
| SJYL0.2-19 | four | 150kg | 1560×850mm | 19m | 2.2kw | 2550×1500×2250mm | 1800kg |
The workshops:
Our Services:
1) We can design the customerized aluminium ladder as per your requirement.
2) The most suitable aluminium ladder will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9) Engineers are available to your country if necessary.
