Chi tiết sản phẩm
Place of Origin: China
Hàng hiệu: SDLIFT
Chứng nhận: CE ISO9001 SGS BV
Model Number: YBC0.1-10
Điều khoản thanh toán và vận chuyển
Minimum Order Quantity: 1 unit
Giá bán: USD1980 - 4800 / Set
Packaging Details: Iron case or plywood case package
Delivery Time: 5-20 work days after deposit
Supply Ability: 3800 units per year
Application: |
Single-four mast hydraulic aluminum alloy lift platform for aerial work |
Warranty: |
24 Months |
Material: |
high strength aluminum alloy |
Lifting Height: |
4m - 20m |
Lift Drive: |
Electric Hydraulic Motor |
Table Size: |
1400*600mm |
Min. Lifting Height: |
1980mm |
Overall Dimensions: |
2000×890×2080mm |
Load Capacity: |
100kg - 200kg |
Voltage: |
110v 220v 240v 380v Optional |
Feature: |
Easy Operation Safety Convenience |
Application: |
Single-four mast hydraulic aluminum alloy lift platform for aerial work |
Warranty: |
24 Months |
Material: |
high strength aluminum alloy |
Lifting Height: |
4m - 20m |
Lift Drive: |
Electric Hydraulic Motor |
Table Size: |
1400*600mm |
Min. Lifting Height: |
1980mm |
Overall Dimensions: |
2000×890×2080mm |
Load Capacity: |
100kg - 200kg |
Voltage: |
110v 220v 240v 380v Optional |
Feature: |
Easy Operation Safety Convenience |

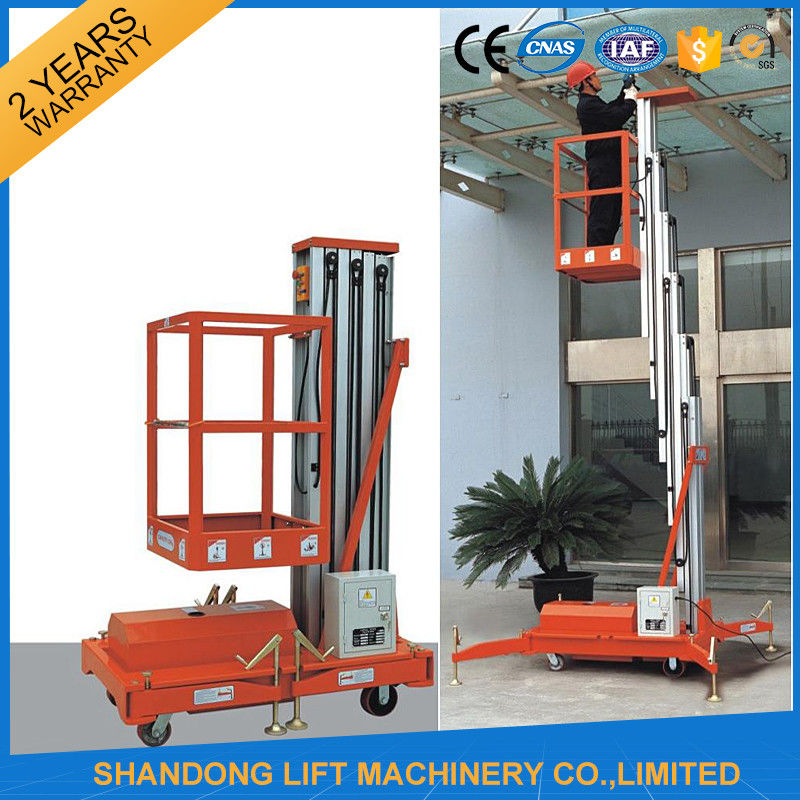

Single-four mast hydraulic aluminum alloy lift platform for aerial work
with CE With 2 Years Warranty
Application:
The hydraulic aluminum alloy lift platform is a very flexible machine. Single man can control it easily. It is widely use in workshop, building site hotel,airport, station,dock stadium,shopping malls, factory and so on,for aerial work such as installation, repairing and cleaning etc.
Instructions
A. To provide good support for the four legs of platform before using.
B. Power-on, operating the elevator button above the electric control box to make the platform up
and down
C. Operating the up button to raise the lift platform. (the motor rotation is reversed when the platform
is not raised, just swap the connection sequence of power cable, the motor can forward.)
D. It has a remote control button above the platform, standing on the platform also can make it up
and down.
E. The platform is equipped with an emergency lowering valve, which is used for the emergency
lowering operation with power failure. The platform can down slowly when loose the drop handle by hand
counterclockwise. The platform will stopped declining after tighten clockwise the drop handle.
Safety precautions:
A. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
B. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
C. Emergency decline valve: it can go down when you meet an emergency.
Product List:
|
Model |
Load capacity |
Platform size |
Lift height |
Column |
Power |
Total dimension |
Weight |
|
YBC0.1-4 |
100kg |
600×600mm |
4m |
one |
1.5kw |
1200×800×1800mm |
280kg |
|
YBC0.1-6 |
100kg |
600×600mm |
6m |
one |
1.5kw |
1260×800×1960mm |
300kg |
|
YBC0.2-6 |
200kg |
1300×600mm |
6m |
two |
1.5kw |
1750×800×1950mm |
480kg |
|
YBC0.1-8 |
100kg |
600×600mm |
8m |
one |
1.5kw |
1260×800×1980mm |
340kg |
|
YBC0.2-8 |
200kg |
1450×600mm |
8m |
two |
1.5kw |
1900×800×1980mm |
580kg |
|
YBC0.1-10 |
100kg |
600×600mm |
10m |
one |
1.5kw |
1600×880×2180mm |
480kg |
|
YBC0.2-10 |
200kg |
1450×600mm |
10m |
two |
1.5kw |
1900×800×1980mm |
760kg |
|
YBC0.2-12 |
200kg |
1650×600mm |
12m |
two |
1.5kw |
2000×890×2080mm |
860kg |
|
YBC0.2-14 |
200kg |
1470×800mm |
14m |
three |
2.2kw |
1750×1220×2250mm |
1040kg |
|
YBC0.2-16 |
200kg |
1470×800mm |
16m |
four |
2.2kw |
1900×1280×2250mm |
1400kg |
|
YBC0.2-18 |
200kg |
1400×1000mm |
18m |
four |
2.2kw |
3500×1500×2100mm |
1980kg |
|
YBC0.15-19 |
150kg |
1560×850mm |
19m |
four |
2.2kw |
2550×1500×2250mm |
2080kg |
|
YBC0.15-20 |
150kg |
1500×1100mm |
20m |
four |
2.2kw |
3800×1500×2250mm |
2200kg |
Factory pictures:
